Greg's Wade Reloaded Extruder With Fishbone Gears

This is an excellent upgrade or replacement for Greg's Wade extruders that features more accessible bolts and gears with much higher contact surface.

Printed with 3 shells, 50% fill, .2mm layer height

Designed for metric hardware.

Your choice of:
PETG or PLA
Any hot end type

Colors we have in stock:
PLA - white, black, light grey, blue, sky blue, light blue, red, orange, yellow, green, fluorescent green, transparent purple, fuchsia, pink, gold, clear
PETG - clear, white, black, translucent magenta, translucent yellow

Message us for custom prints of any Greg's Wade extruder derivative at no extra cost!

Screws and hardware not included.

From the Author: http://www.thingiverse.com/thing:18379
This derivative of Greg's Wade Extruder collects all the best ideas and latest features and improvements:

* Greg's excellent "Guidler" for perfectly lined up filament feed AND easy access of the hobbed bolt
* Tiltable idler-screws for opening the idler without removing the screws entirely
* 4mm elevation of whole extruder body/bolt/motor mount to allow slightly bigger 9/47 herringbone gears
* 2mm extra bolt-motor-distance for the same reason
* M4 nuts and screws for idler, since M3 screws in more than 60mm length are sometimes hard to source (at least in the common hardware stores of northern germany..)

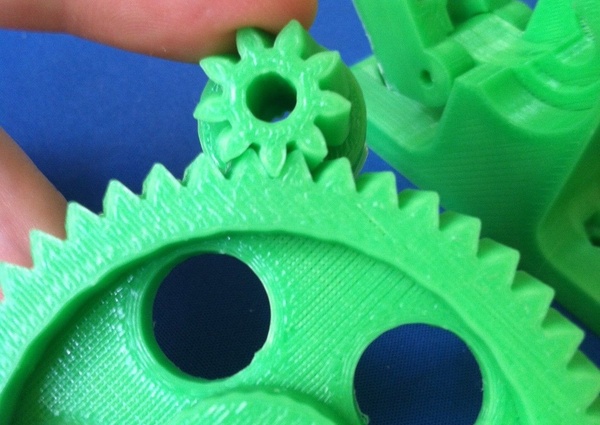

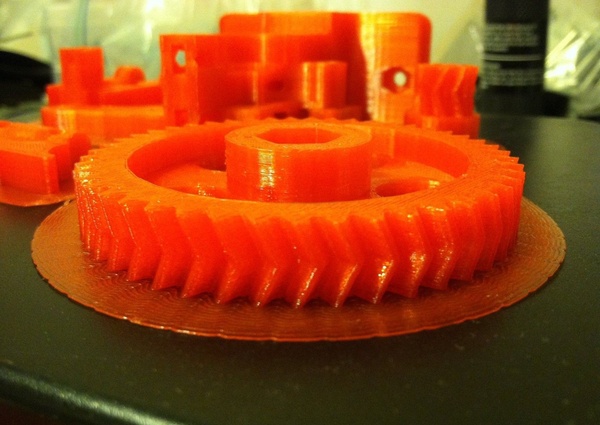

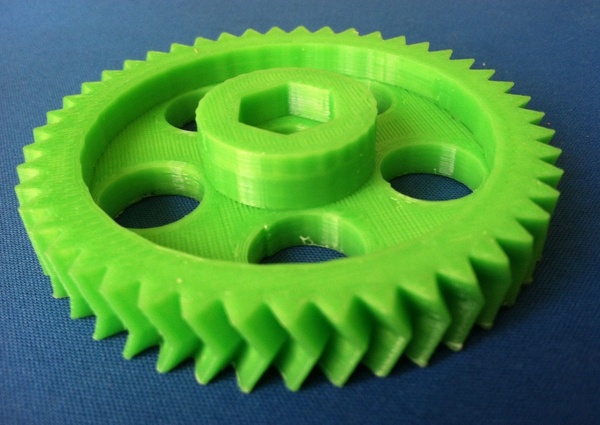

* Well, 9/47 herringbone gears!
* All nut-traps have been corrected for correct fit (all prusa parts seem to use slightly wrong sizes.. should be 5.5mm wrench size for M3 nuts, I changed all of them to the right ISO values with additional 0.2mm clearance. Fits great for a precisely calibrated prusa)
* Additional hotend-mount option "reprapfaborg" for Stoffel15's great hotends that use 10mm shaft diameter of 20mm length (shown on one of the pictures as a cut-view); you can get one via reprap-fab.org
* 8mm thickness of motor mount (instead of 10mm) in reference to wider herringbone gear

$20.13
ships within 1-3 days
Free shipping
Add to cart
